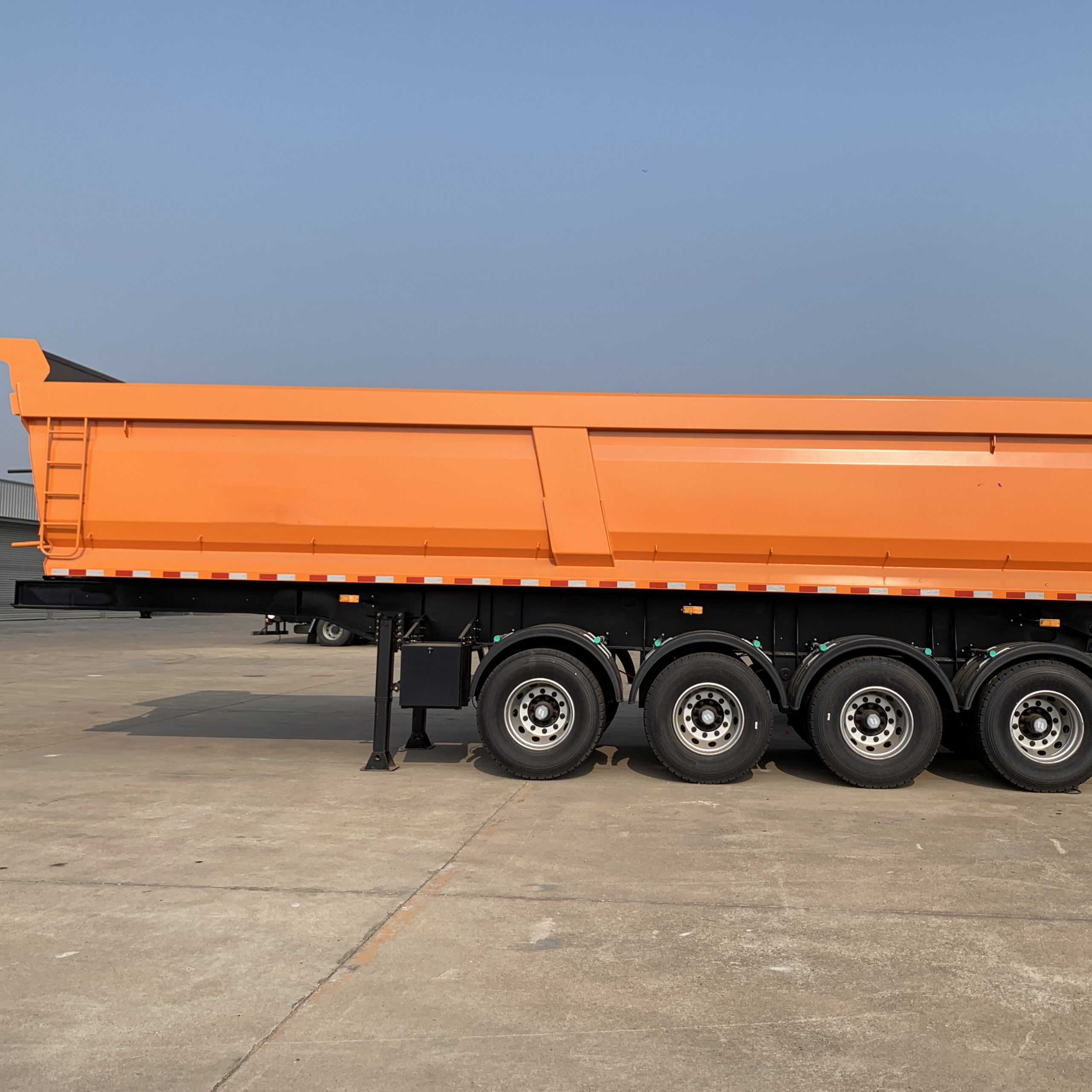

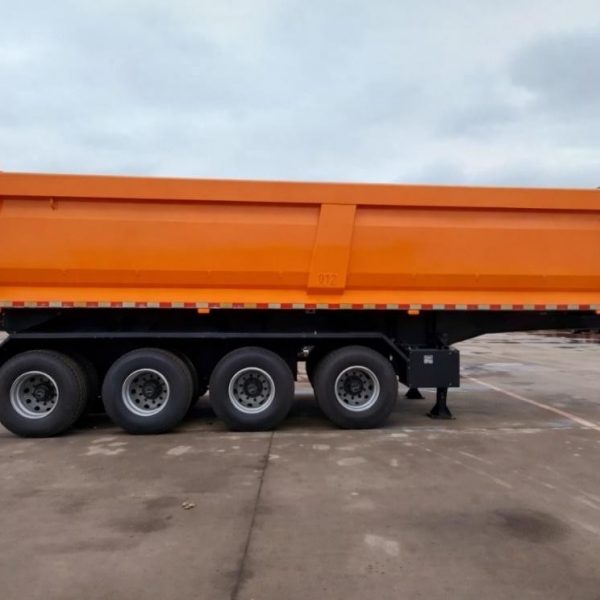

Tipping Dump Semi-Trailer – 4 Axles – Capacity 54 m³

General Specifications – Body Dimensions:

• Body length: 10,590 mm

• Body width: 2,500 mm

• Body height: 1,700 mm

• Hydraulic system

Dimensions can be modified according to customer requirements.

Body Shape:

• Rectangular, U-shaped

Load Capacity:

• 45 tons or more

Axles:

• Equipped with 4 axles, each with a capacity of 16 tons

• The first axle is liftable to reduce unladen weight

• All axles are fitted with mechanical suspension with cushions

Door Steel Thickness:

• 6 mm

Raw Materials:

• The equipment is manufactured from hot-rolled low-carbon steel plates

• Steel grade ST-37, supplied by the Libyan Iron and Steel Company – Misrata

Lower Chassis:

• Composed of two (2) main I-section beams

• Reinforced with cross members in accordance with technical specifications

Upper Chassis:

• Floor made of ST 37 steel, 6 mm thick

• Side walls 1,700 mm high and 6 mm thick, reinforced with inclined supports

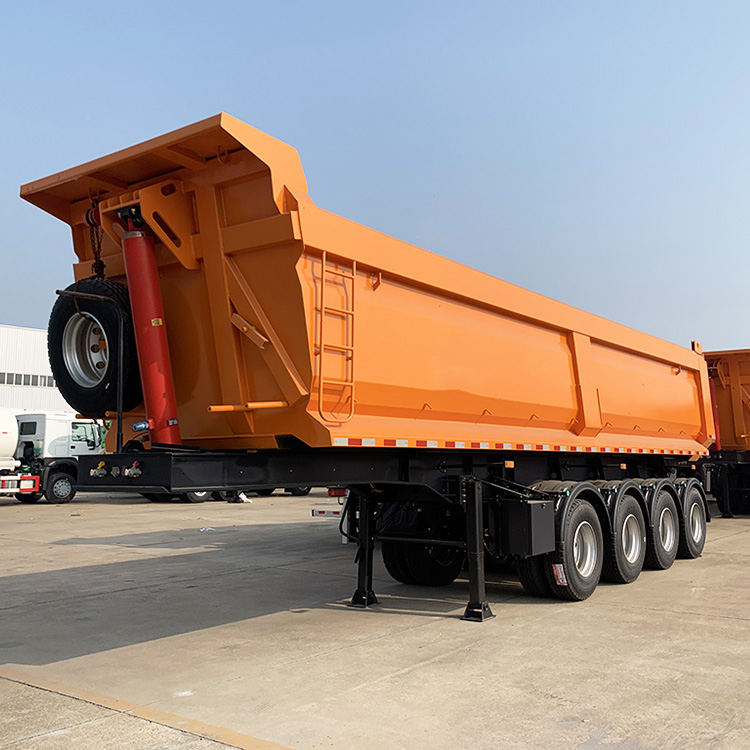

• Front-mounted hydraulic cylinder equipped with a scissor system to facilitate lifting, lowering, and equipment stabilization

Equipment Features:

• The tipping semi-trailer operates with a hydraulic system allowing rear single-direction unloading

• Lifting angle: 52 degrees

• Hydraulic system controlled from the driver’s cab

• 4 axles, 16-ton capacity per axle

• Lower kingpin 3 inches, compatible with the fifth wheel

• 16 mounted tires + 1 spare wheel

• Pneumatic or automatic dual-line braking system, operating with the semi-trailer

• 2 manually operated landing legs, static load capacity 50 tons

• Complete 24-volt electrical system, including required lights and reflectors

• Manual winch for raising and lowering the spare wheel

• Tool box

• Anti-fold tire protection
