Three-Way Tipping Dump for IVECO Truck

IVECO AT 420 T42 H – 6×4

The dump body is designed according to the technical specifications of the truck, taking into account the maximum permissible weight and the load distribution according to the vehicle dimensions.
This ensures safety and security during transport of the designated load and during unloading operations, while complying with the truck standards.

General Specifications:

• Body length: 5,500 mm

• Body width: 2,400 mm

• Body height: 1,000 mm

• Dump body floor made of 5 mm thick steel plate

• Dump body doors made of 3 mm thick steel plate

Weight:

• Equipment weight: approximately 3,275 kg

• Dump body payload: 18 to 20 tons

Hydraulic Unloading System:

• The dump body operates with a hydraulic system allowing unloading in three directions (rear + sides)

• Lifting angles:

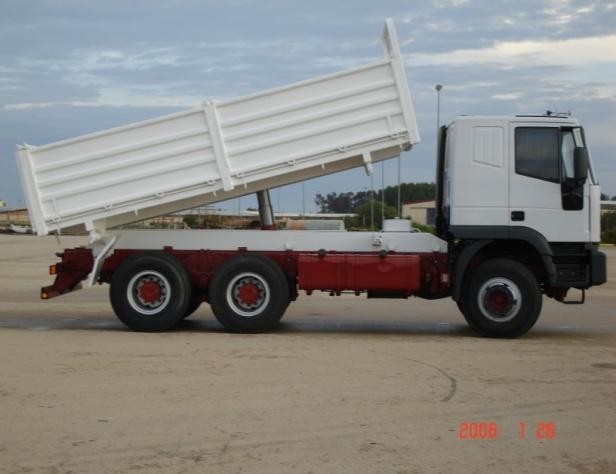

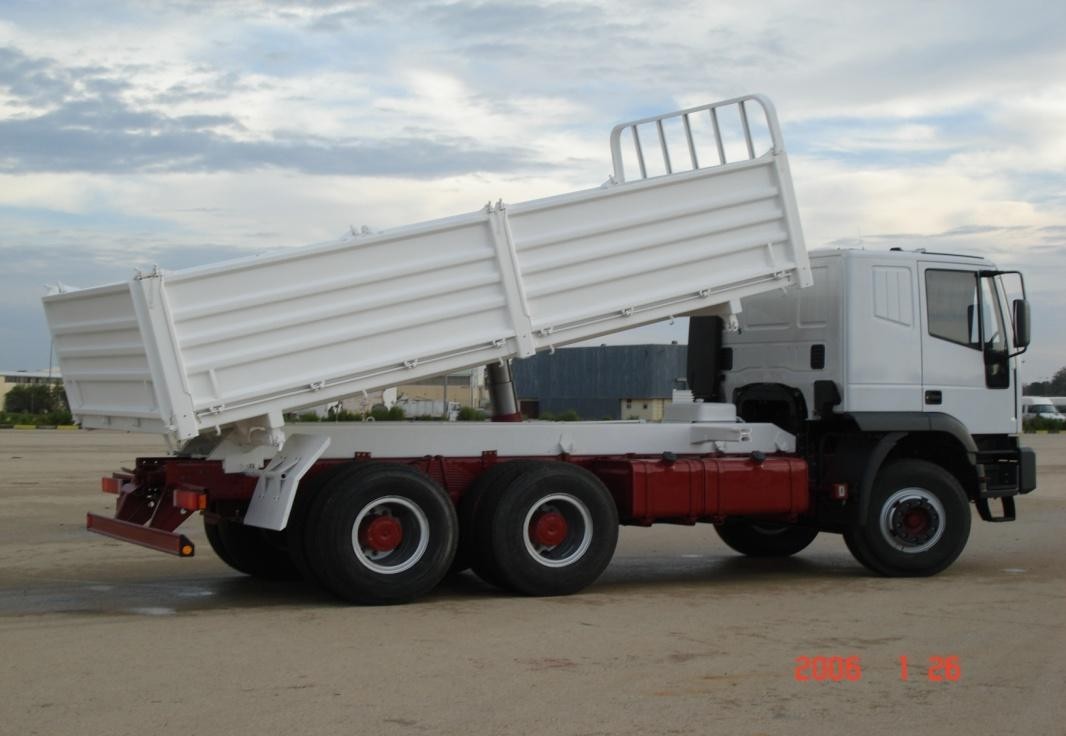

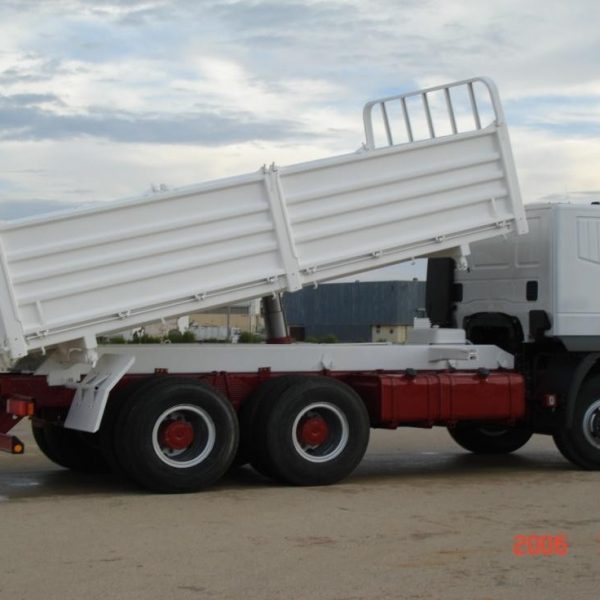

  • 52° for rear unloading

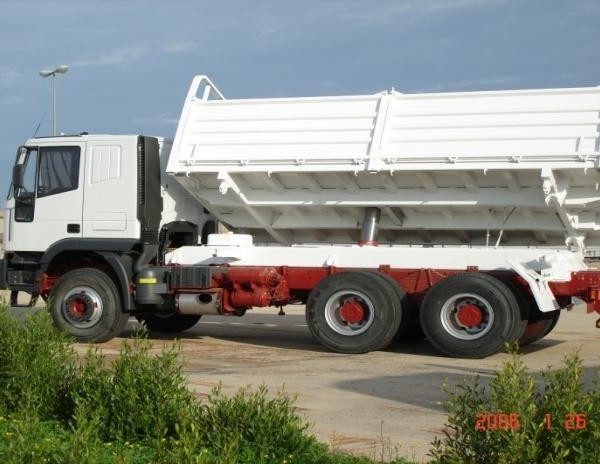

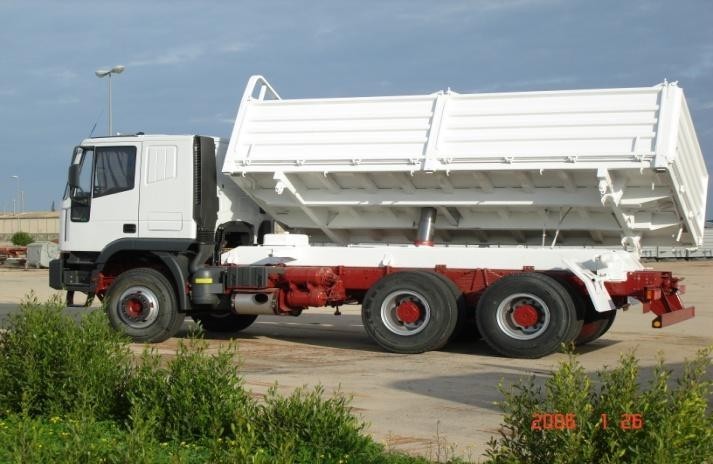

  • 45° for side unloading

• The hydraulic system also allows operation with a tipping trailer

• Hydraulic system is controlled from the driver’s cab

Type of Metal Used:

• High-strength steel suitable for dump body applications

• Manufactured from low-carbon hot-rolled steel plates

• Steel grade ST-37, supplied by the Libyan Iron and Steel Company – Misrata
